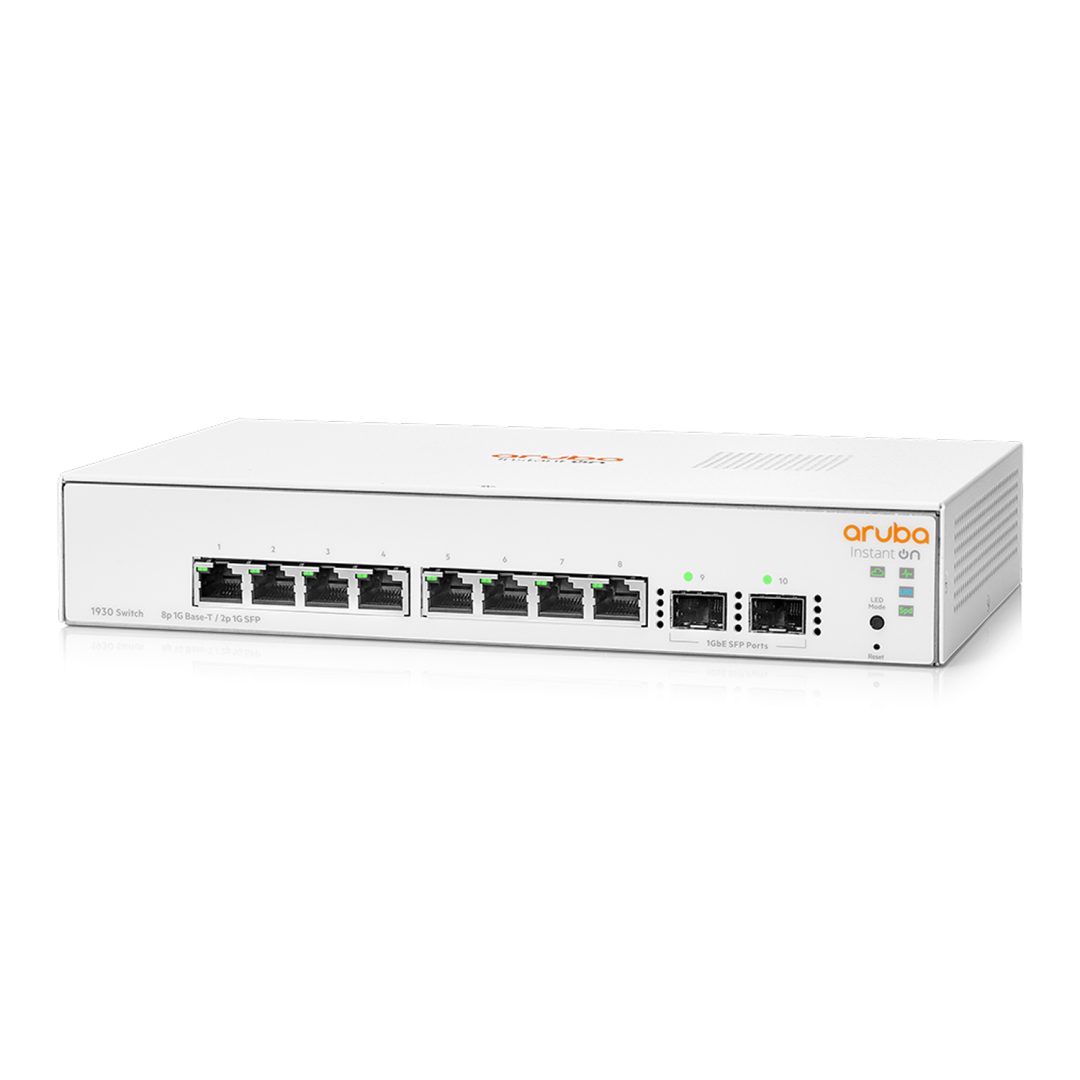

HPE Instant On 1930 8-Port Gigabit Switch Nepal

Brand	Hewlett Packard Enterprise(HPE)
I/O Ports and Slots	8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports
Dimensions	10(w) x 6.28(d) x 1.73(h) in, (25.4 x 15.95 x 4.39 cm), (1U height)
Weight	2.55 lb (0.82 kg)
Processor and Memory	ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Packet Buffer	1.5 MB
Performance	100 Mb latency < 5.2 uSec, 1000 Mb latency <3.0 uSec, 10000 Mb latency n/a, Throughput (Mpps) 14.88 Mpps, Capacity 20 Gbps, Routing table size (# of static entries) 32, MAC address table size (# of entries) 8000, Reliability MTBF (years) 178
Operating temperature	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C)
Non-operating temperature	-40°F to 158°F (-40°C to 70°C)
Non-operating relative humidity	15% to 95% @ 140°F (60°C)
Altitude	Up to 10, 000ft (3.048 Km)
Acoustic	Fanless
Electrical Characteristics Frequency	50-60 Hz
AC voltage	100-240V
Current	0.2 A
Maximum power rating	11.0 W
Idle power	6.2 W
PoE power	n/a
Power supply	External power adapter (included)
Safety	UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1, UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions	VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Immunity Generic	CISPR 24 / CISPR 35
EN	EN 55024:2010 / EN 55035:2017
ESD	IEC 61000-4-2
Radiated	IEC 61000-4-3
EFT/Burst	IEC 61000-4-4
Surge	IEC 61000-4-5
Conducted	IEC 61000-4-6
Power frequency magnetic field	IEC 61000-4-8
Voltage dips and interruptions	IEC 61000-4-11
Harmonics	IEC 61000-3-2, EN 61000-3-2
Flicker	IEC 61000-3-3, EN 61000-3-3
Device Management	HPE Networking Instant On Cloud; Web browser; SNMP Manager
Mounting	Supports table-top mounting, Supports wall-mounting with ports facing either up or down, Supports under-table mounting using base surface mounting holes
Transceivers	HPE Networking Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A ), HPE Networking 1G SFP LC LX 10km SMF Transceiver (J4859D), HPE Networking Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A)
Warranty	1 Year Warranty

HPE Networking Instant On 1930 8-Port Gigabit Switch with 2 SFP Ports – Smart Managed Network Switch for Growing Businesses

The HPE Networking Instant On 1930 8-Port Gigabit Switch with 2 SFP Ports is a powerful smart-managed Layer 2+ switch designed for small and medium-sized businesses that require secure, reliable, and high-speed network connectivity. Featuring 8 Gigabit Ethernet ports and 2 dedicated SFP uplink ports, this switch provides seamless network expansion, efficient traffic management, and dependable performance for offices, retail stores, educational institutions, hospitality, and surveillance systems.

Built with advanced Layer 2+ management features, the Instant On 1930 series supports VLANs, Quality of Service (QoS), link aggregation, static routing, and network monitoring, helping businesses optimize performance while maintaining security. The switch can be easily managed through the Instant On mobile app or web portal, making deployment and configuration simple even for users with limited networking experience.

Its compact design, silent fanless operation, and energy-efficient architecture make the HPE Instant On 1930 an excellent choice for modern business environments that demand reliable networking with minimal maintenance.

8 Gigabit Ethernet Ports – Fast & Reliable Connectivity

The switch features 8 Gigabit RJ-45 ports, providing high-speed wired connectivity for computers, printers, IP phones, wireless access points, NAS devices, and surveillance equipment.

2 Dedicated SFP Uplink Ports

Equipped with 2 Gigabit SFP ports, the switch supports high-speed fiber uplinks, enabling long-distance network connections and seamless integration with core switches and network infrastructure.

Smart Layer 2+ Network Management

Advanced networking capabilities include:

VLAN support for network segmentation
Quality of Service (QoS)
Static Routing
Link Aggregation (LACP)
IGMP Snooping
Access Control Lists (ACL)
Loop Protection
Network Monitoring & Diagnostics

These features help improve network performance, security, and reliability.

Easy Cloud & Mobile Management

The HPE Networking Instant On mobile app and intuitive web interface allow administrators to configure, monitor, and manage the network remotely from virtually anywhere.

Silent & Energy-Efficient Design

The compact fanless design ensures silent operation, making it ideal for offices, conference rooms, retail spaces, and educational environments while reducing power consumption.

Explore More from Himmcom

Networking Solutions Collection –

HPE Networking Official Website – https://www.hpe.com

Why Choose HPE Networking Instant On 1930 8-Port Switch?

8 × Gigabit Ethernet Ports
2 × Gigabit SFP Uplink Ports
Smart Layer 2+ Managed Switch
VLAN, QoS & Static Routing Support
Easy Cloud & Mobile App Management
Silent Fanless Design
Energy-Efficient Business Networking
Ideal for Offices, Retail, Schools & Surveillance Systems

The HPE Networking Instant On 1930 8-Port Gigabit Switch with 2 SFP Ports is an excellent solution for businesses looking for a secure, scalable, and easy-to-manage networking switch that delivers enterprise-grade performance with simple cloud-based management.
